Pesado HD Shower Screen Review - Is It Worth It for Your Breville?
Pesado HD Shower Screen Review - Is It Worth It for Your Breville?
The Pesado HD V2 shower screen has become one of the most talked-about upgrades in the home barista community, and for good reason. It solves a real problem - uneven water distribution - with a genuinely different approach to screen design. But is it the right upgrade for your machine? Here's everything you need to know before buying.
What Is the Pesado HD Shower Screen?
The Pesado HD (High Diffusion) is a precision-engineered stainless steel shower screen designed to replace the stock mesh screen in Breville espresso machines. Where a standard shower screen uses a mesh to try to spread water evenly, the Pesado HD uses 18 machined channels to direct water to specific zones of the puck surface - including all the way out to the basket edge.
The V2 version, which is what Coffee Nerd stocks, is an improvement on the original design with refined channel geometry for more consistent flow paths across a wider range of flow rates and machine types.

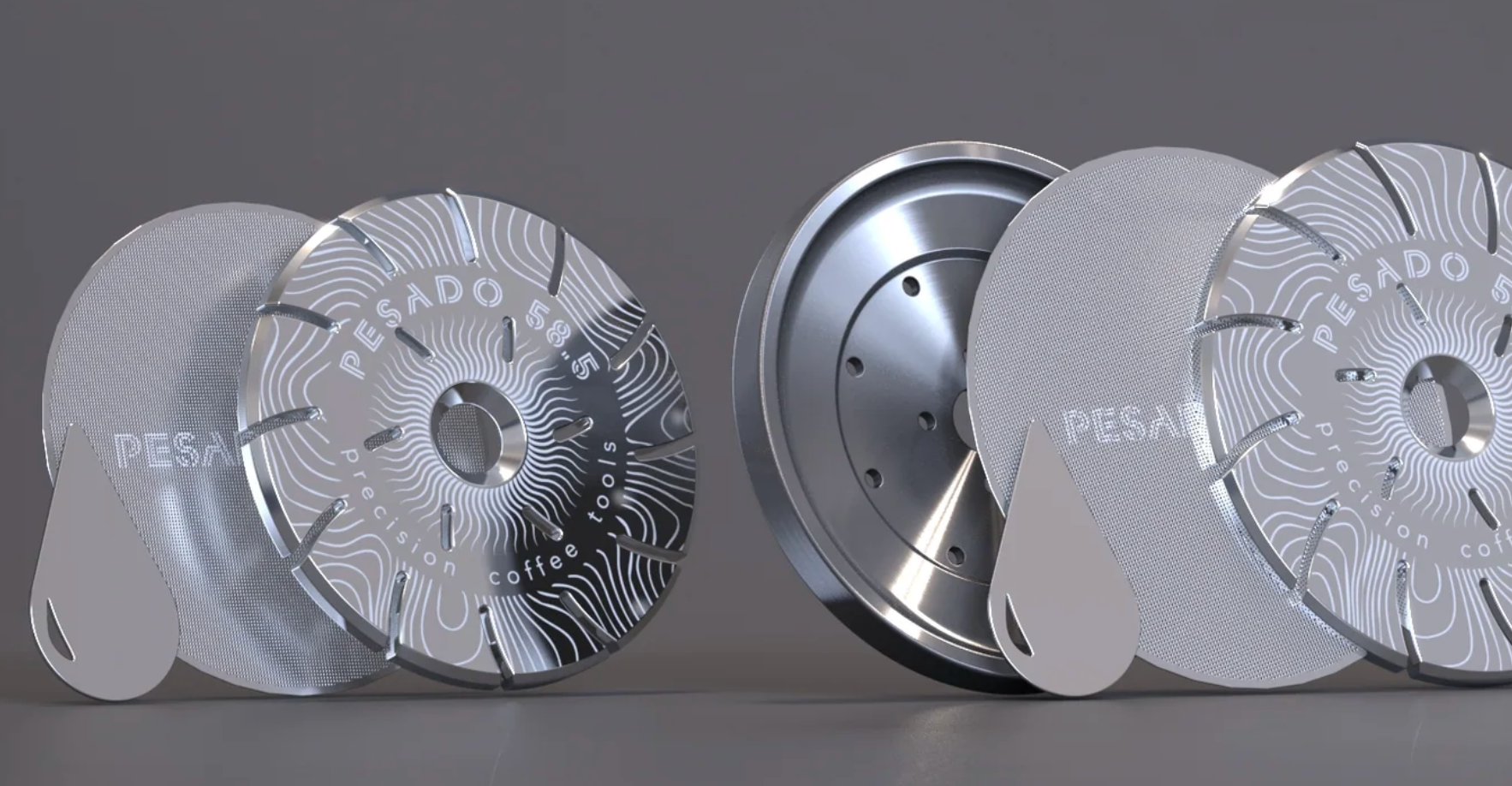

For Breville 58mm machines (Dual Boiler, Oracle, Oracle Touch), the Pesado HD comes as a full MV-HD set - shower screen plus a stainless steel diffuser plate that replaces the plastic one sitting behind the screen in the grouphead. That's important, because the plastic diffuser plate is actually a bigger problem than the shower screen on these machines - and both need addressing together for maximum benefit.
The Design: Why Channels Beat Mesh

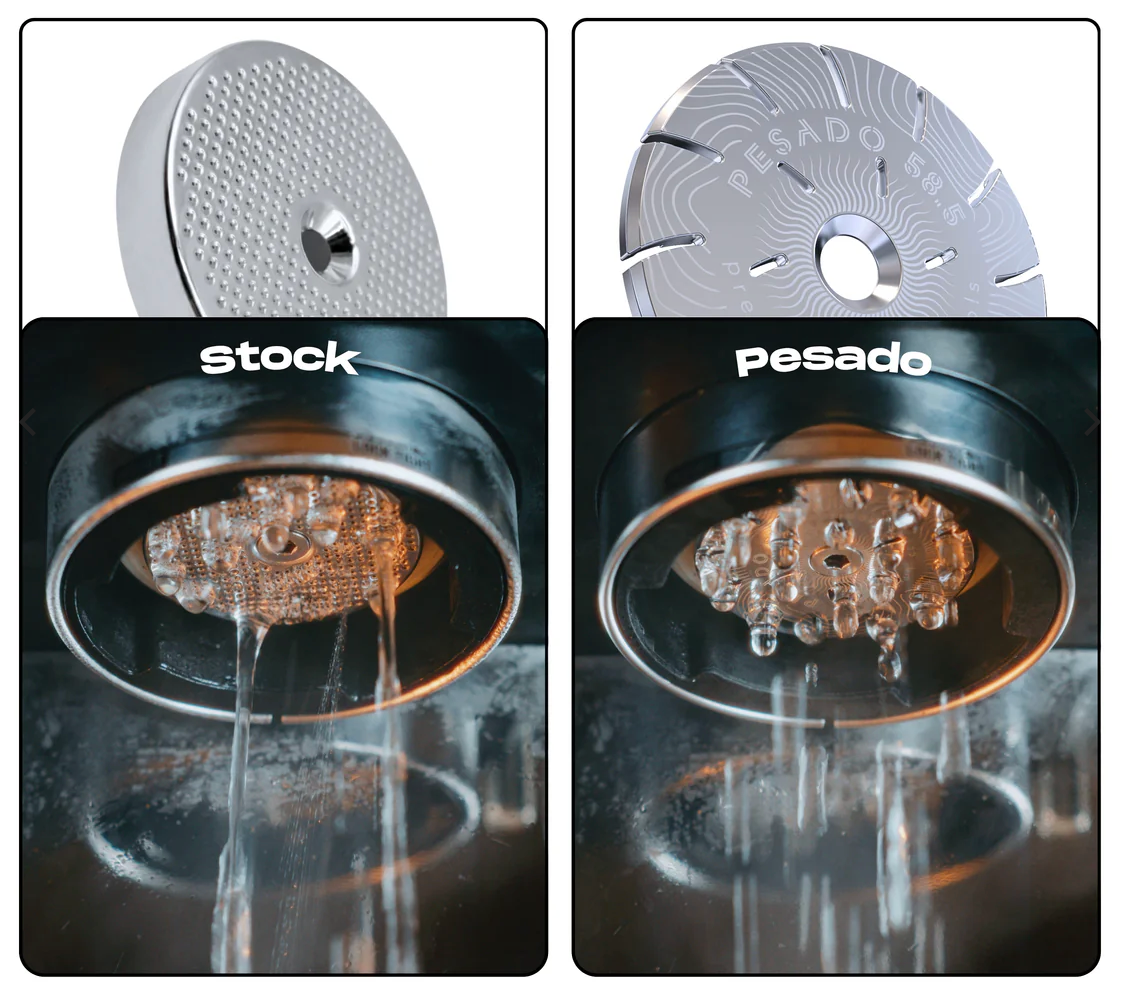

Traditional mesh shower screens have an inherent limitation: water clings to the mesh material as it passes through, following the mesh rather than flowing in controlled paths. The result is unpredictable distribution - not catastrophically uneven, but inconsistent enough that you can't fully eliminate it through grind or tamp adjustments.

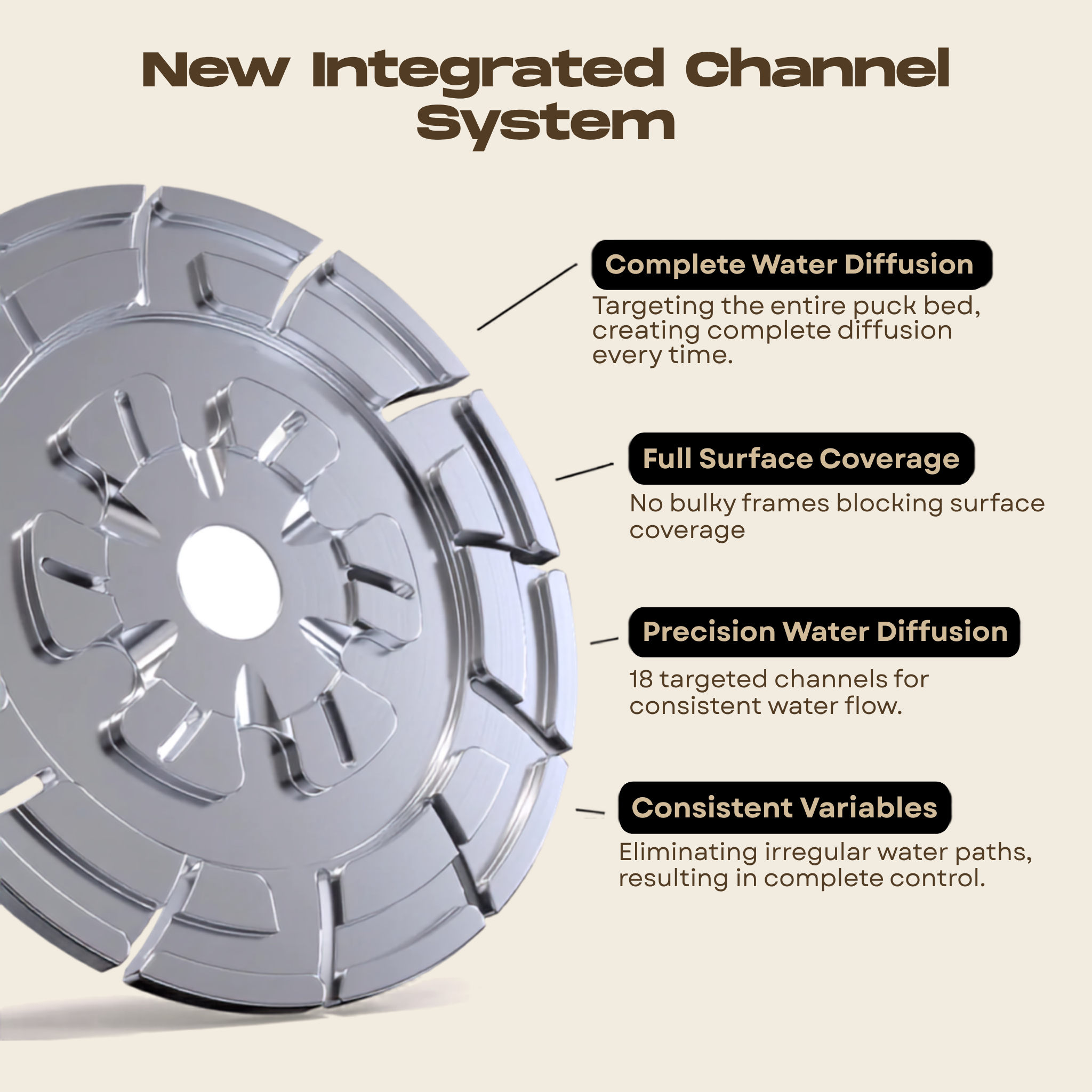

The channel design solves this by removing the mesh entirely. Water enters the screen, is directed along 18 precisely positioned channels, and exits at specific points distributed across the full puck surface. There's nothing for the water to grip or cling to - it follows the channels and arrives where the channels point, every time.
The outer channels are the key feature. They extend all the way to the 58.35mm edge of the screen, covering the full basket diameter. Most stock screens leave a 4 to 5mm ring around the perimeter of the basket under-saturated - the Pesado HD eliminates that gap entirely.
Real-World Performance
The difference most people notice first is how much easier it becomes to dial in a shot. When your water distribution is consistent, your grind adjustments behave predictably. The feedback loop between what you change and what you taste becomes direct. For home baristas who've been chasing consistency without being able to pin down why shots vary, this is often the missing piece.
Channelling - where water blasts through a weak point in the puck rather than flowing evenly - becomes noticeably less frequent. You'll see it in your bottomless portafilter if you use one: cleaner, more centred extraction with fewer spurts or uneven streams.
Flavour-wise, most people report shots tasting sweeter and more balanced. This isn't a dramatic transformation - it's the result of more even extraction, which means less over-extraction of some parts of the puck and less under-extraction of others. The cup gets closer to tasting the coffee as it was intended, rather than a muddy blend of both extremes.
Here's what some of our customers said after upgrading:
"Saw this discussed on a few forums. Was struggling to get a consistent pulled shot of espresso. Gave the screen a try and now have consistent well poured shots with no channeling." - Vivian E.
"I had to constantly fiddle with grind and dose to stop channelling. As soon as I replaced the stock diffuser and screen with this, every shot is perfect. Had to reduce the dose slightly, but every shot is way more balanced." - Mark H., Breville Dual Boiler owner.
"I was amazed at how it has transformed my machine." - Shane M.
Machine Compatibility — Read This Before Buying
This is the most important section if you're considering the upgrade. The Pesado HD comes in two versions for Breville machines, and they are not interchangeable.
54HD - Breville 54mm machines
Compatible with: Bambino, Bambino Plus, Barista Pro, Barista Touch, Barista Touch Impress, Duo-Temp Pro, Barista Express, Barista Express Impress, The Infuser.
This version replaces the shower screen only. One important note: the 54HD is compatible with double baskets only - it is not compatible with single shot baskets.
MV-HD - Breville 58mm machines
Compatible with: Dual Boiler (BES920), Oracle (BES980), Oracle Touch (BES990).
This version replaces both the shower screen and the plastic diffuser plate with stainless steel. It is compatible with both single and double shot baskets.
Important: the MV-HD is not compatible with the Oracle Jet. If you have an Oracle Jet, this upgrade is not suitable for your machine.
Installation
Installation is straightforward and takes under five minutes on either machine type. You don't need special tools or technical knowledge - if you can change a light bulb, you can do this.
For 54mm machines, you unscrew the centre bolt, remove the stock screen, fit the Pesado HD in its place, and refit the bolt. Run a rinse cycle before your first shot to flush any manufacturing residue.
For 58mm machines, the process is the same but includes an additional step: after removing the shower screen, you'll also lift out the plastic diffuser plate and replace it with the stainless version. The full kit includes everything you need - screen, diffuser plate, and all required hardware.
Pricing
The 54HD for Breville 54mm machines is $77. The MV-HD set for Breville 58mm machines is $88, which includes the shower screen, stainless diffuser plate, and contact mesh - everything needed for a complete grouphead overhaul.
Both ship same day from NSW for orders placed before the daily cutoff.
The Verdict
The Pesado HD V2 is a genuine upgrade, not a marginal one. The channel-based design addresses a real limitation in standard mesh shower screens, and the improvement in extraction consistency is noticeable enough that most people feel the difference within the first few shots.
If you're on a 54mm Breville and regularly fighting inconsistency or channelling, the 54HD at $77 is one of the best value upgrades you can make. If you're on a Dual Boiler, Oracle, or Oracle Touch, the MV-HD set at $88 is a no-brainer — you're replacing both the shower screen and the plastic diffuser plate in one go, which is the complete fix for grouphead distribution issues on these machines.
The only people who shouldn't buy it are Oracle Jet owners (not compatible) and anyone who primarily uses single baskets with a 54mm machine (the 54HD requires double baskets).
